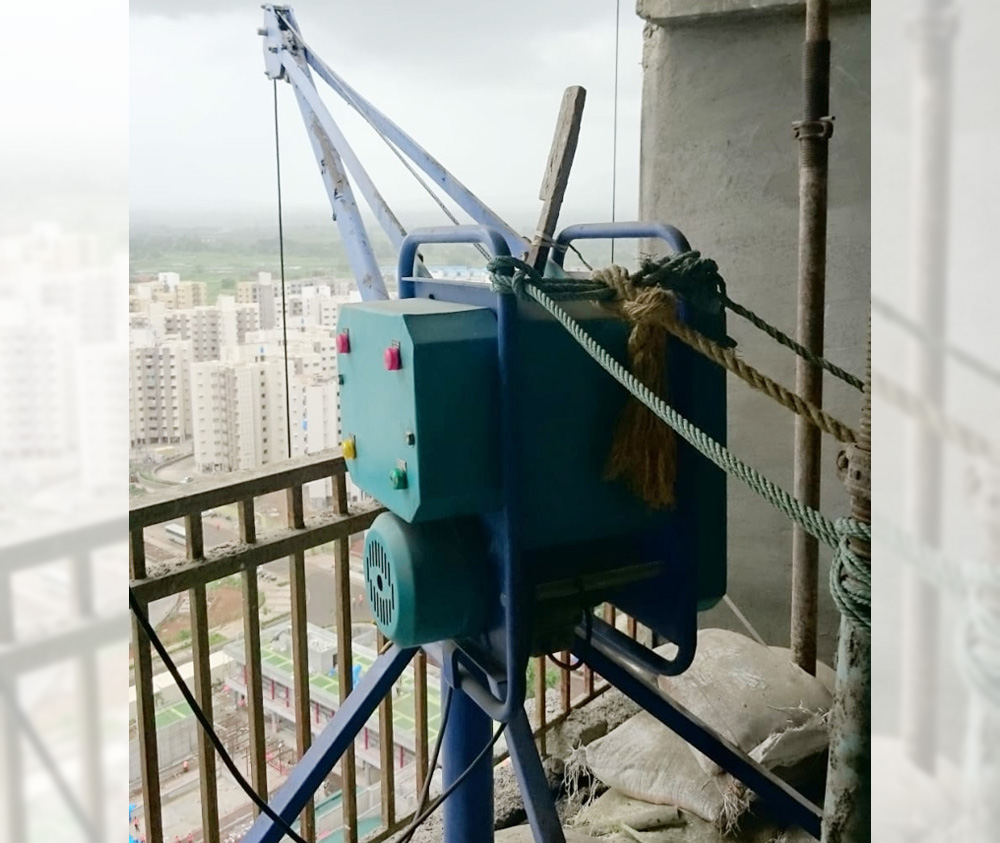

Mini-crane is widely used to transport materials in industries where safety, efficiency, speed and economy are of prime importance. It works on a Speed reduction gears & rope winder system. Designed according to Universal standards, it is robust and well dimensioned to meet the most demanding requirements at construction sites.In manufacturing careful attention is paid to calculation, components and quality. Best quality Electrical Components are used. Sales are supported by comprehensive spare parts and after sales service. Our Mini-crane helps to save enormous time compare to climbing up ladders and stairs. Folding structure design assures you carry it to your destination comfortably.

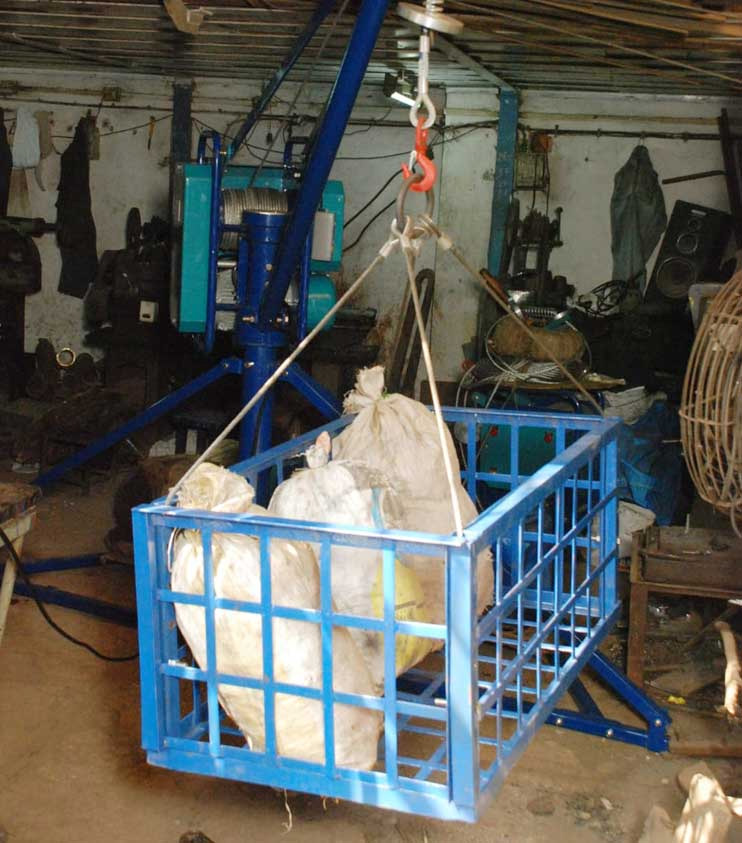

Mini-crane is specially designed for material handling from ground to upper floors or floor to floor or visa versa. This unit being handy, it is easy to shift it by dismantling and reassembling it at desired locations. Lifting Boom is swiveling around 360° on its tripod stand axis. Counter weight is necessary to stack on stand tripod supports to balance the Boom with material load. There are three basic models as per party’s requirements, are as follows
| Model No. | Capacity | Rope length |
|---|---|---|
| SE-MC-500 | 450Kgs. | 75 Mtrs. |
| SE-MC-500E | 450Kgs. | 130 Mtrs. |
| SE–MC-1500 | 1500Kgs. | 100 Mtrs. |
| Technical Specifications. | Model: SE / MC / 500 | Model: SE / MC / 500 / E | Model: SE / MC / 1500 |
|---|---|---|---|
| Lifting Power in Kgs. | 500 | 500 | 1500 |
| Lifting Speed | 18-22 Mtrs / Minute | 18-22 Mtrs / Minute | 8-12 Mtrs / Minute |
| Length of Wire | 75 Mtrs | 130 Mtrs | 100 Mtrs |
| Wire rope diameter | Ø 8mm | Ø 8mm | Ø 12 mm |
| Cable rupture Load | 2686 | 2686 | 7686 |
| Motor Power Rating | 3 HP, 3Phase | 5 HP, 3Phase | 7.5 HP/960 RPM,3Ph. |
| Rotation Radius | 360 Degrees | 360 Degrees | Fixed Point 0 Degrees |
| Horizontal Movement | With trolley wheels (extra on request) | With trolley wheels (extra on request) | On Fixed I-Tracks |
| Counter Weight | 1500 Kgs | 1500 Kgs | 3000 Kgs |
We have these different models with different Specification available.
| Model No. | Lifting Capacity | Wire Rope | Motor | Travel Speed | Boom Position |
|---|---|---|---|---|---|
| SE/MC/500 | 450 Kgs. Max. | 75 Mtrs.x8mm | 3HP x 4P | 18 to 22 Meters/Minute | 360 Rotation |
| SE/MC/500/E | 450 Kgs | 130Mtrs.x8mm | 5HP x 4P | 18 to 22 Meters/Minute | 360 Rotation |
| SE/MC/500/ES | 450 Kgs | 75Mtrs.x8mm | 3HP x 6P | 11 to 14 Meters/minute | 360 Rotation |
| SE/MC/500/ES | 450 Kgs | 130Mtrs.x8mm | 3HP x 6P | 12 to 16 Meters/minute | 360 Rotation |
| SE/MC/1000 | 950Kgs. Max. | 100Mtrs.x12mm | 7.5HP x 4P | 6 to 12 Meters/Minute | Fixed non-Rotate |
| SE/MC/1000E | 950Kgs. Max. | 100Mtrs.x12mm | 5HP x 6P | 4 to 9 Meters/Minute | Fixed non-Rotate |
| SE/MC/2000 | 1500 Kgs. | 100Mtrs.x 14mm | 10HP x 6P | 6 to 13 Meters/minute | Fixed non-Rotate |
